LOAD TEST

LOAD TEST

Lamp	Primary				Secondary				(W1 - W2)
Lamp	W1	V1	A1	PF1	W2	V2	A2	PF2	Losses
0	9.667	110	0.1767	0.49	0.000	110	0.000	-	9.667
1	44.000	110	0.4300	0.93	34.333	108	0.320	1	9.667
2	76.000	110	0.7067	0.97	63.667	106	0.600	1	12.333
3	95.000	110	0.8800	0.98	81.000	104.9	0.773	1	14.000
4	108.000	110	0.9967	0.99	93.333	104.7	0.893	1	14.667

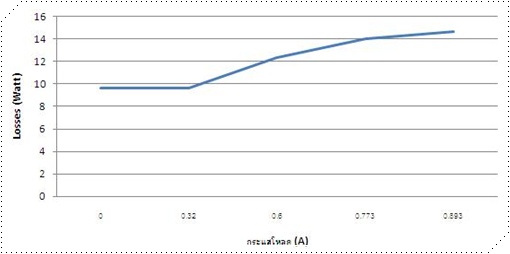

กราฟแสดงค่า Losses กับกระแสโหลด Secondary

At Full Load Condition

h                              =    86.42 %

Losses                   =   14.667 W

S₁                             =   109.637  VA

S₂                             =  93.49 VA

Voltage Regulation =  5.06%

LOAD TEST
