Polarity Test / Voltage Tapping
Polarity Test
V12 = 110 V V34 = 111.2 V V13 = 220 V |
Voltage Tapping

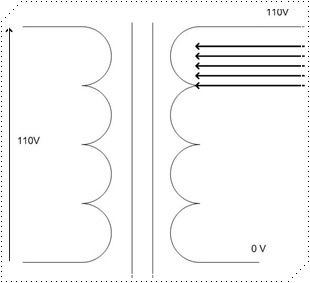

Design

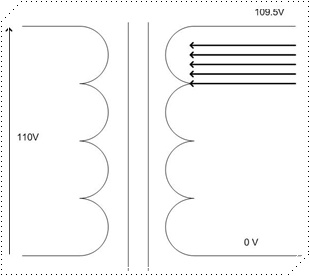

Actual
Designed Voltage | Measure Value | Error | Winding(Turns) | Designed(Volt/turn) | Calculate Volt/turn |
110 | 109.5 | 0.5 | 354 | 0.3109 | 0.30932203 |
107 | 106.9 | 0.1 | 344 | 0.3109 | 0.31075581 |
101 | 99.7 | 1.3 | 325 | 0.3109 | 0.30676923 |
98 | 97.3 | 0.7 | 315 | 0.3109 | 0.30888889 |
86 | 85.7 | 0.3 | 277 | 0.3109 | 0.30938628 |
